6 Items ADS1115 Analog-to-Digital Converter 16 Bit ADC 4 Channel Module Converter with Programmable Achieve Amplifier ADC Converter Improvement Appropriate with Arduino Raspberry Pi

Worth: $19.99
(as of May 16,2021 01:58:32 UTC – Particulars)

6 Items ads1115 analog-to-digital converter 16 bit ADC 4 channel module converter with programmable acquire amplifier adc converter growth suitable with arduino raspberry pi

Options:

Helpful design:
A simple to make use of I2C ADC converter, with programmable acquire amplifier. ADC Converter might help you employ sensors reminiscent of, infrared or photodiodes, which give analog values.

Specs:
Materials: steel
Colour: blue
ADC bit charge: 16 bit
Channels: 4 Channel AN0 AN1 AN2 AN3
Enter voltage: 2.0v-5.5v
Channel enter voltage: 0-VDD
Steady mode: 150uA
Single-shot mode: auto shut down
Programmable knowledge charge: 8sps-860sps
Enter vary programmed management, 7 sorts enter ranges:
-0.256V ~ + 0.256V
-0.512V ~ + 0.512V
-1.024V ~ + 1.024V
-2.048V ~ + 2.048V
-4.096V ~ + 4.096 V
-6.144V ~ + 6.144V

Bundle Included:

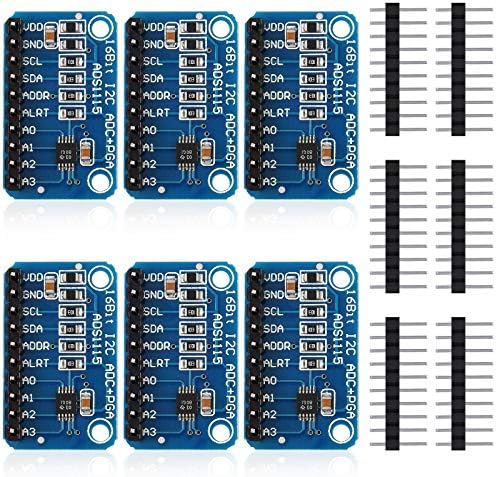

6 x ADS1115 16 Bit 4 Channel Analog-to-Digital ADC Converter
6 x Pin Header

Heat notices:
Our case has no display screen movie, so it will not intrude your to the touch display screen.
The point out of brand name title and any associated mannequin above is just for functions of demonstrating compatibility, our model title is Weewooday.

Low present consumption: the availability present of those digital converters are 150 µA, routinely powers down after a conversion and properly reduces present consumption throughout idle
The information charge: programmable knowledge charge is 8sps-860sps, transferred through an I2C-compatible serial interface; Built-in programmable comparators simplify system monitoring
Sensible and handy: ADC Converter might help you employ sensors reminiscent of, infrared or photodiodes, which give analog values; Resolve the issue of unable to learn the analog enter by itself
Vast provide vary: the voltage reference of those 16 bit ADC 4 channel module starting from 2.0V to five.5V, appropriate for frequent microcontrollers, reminiscent of for Arduino and Raspberry Pi
What you’re going to get: package deal consists of 6 items straightforward to make use of I2C ADC converters, with programmable acquire amplifier; The prolonged temperature vary is from minus 40 levels Celsius to 125 levels Celsius
