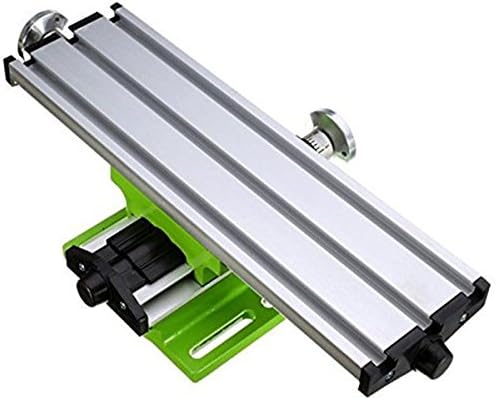

Compound Slide Desk, MYSWEETY Multifunction Worktable Milling Working Desk Milling Machine Compound Drilling Slide Desk For Bench Drill

Value: $36.89
(as of May 11,2021 15:46:30 UTC – Particulars)

Product Description

Function:

X axis journey : 200mm
Y axis journey : 50mm
Distance between grooves : 34mm
Working desk dimension : 310mmx90mm
Top : 80mm (together with two working clamp)

Bundle consists of:

1 x BG6300 Milling Working Desk

1 x Equipment Set

1 x Guide

Miniature precision multifunction Milling Machine Bench drill Vise Fixture worktable X Y-axis adjustment Coordinate desk
Function:

Sort : BG6300 working desk

T solt : have three t solts

Solt dimension: 15mmx8mmx6mm

Mounting gap distance : two holes 93mm away from the closest is the center is 98mm,the gap is 112mm

Zero adjustment handwheel rotates a circle : 1.25mm.one lattice equal is 0.05mm

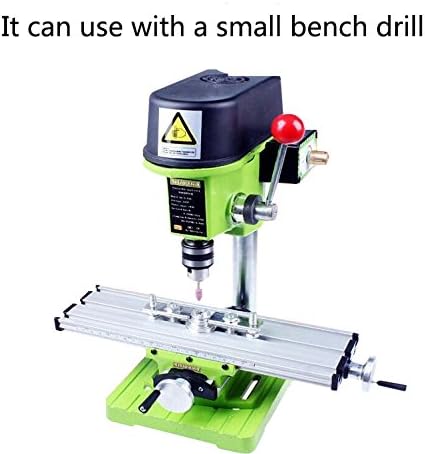

Apple to : Mini drill and drill bracket sequence and different appropriate machine

The desk is appropriate for Mini Drill and drill bracket sequence. It could actually additionally apply to different appropriate machine.

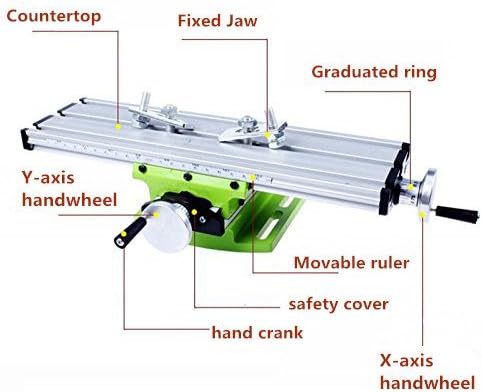

The work desk consists of a number of adjustable dovetail slotaluminum alloy composition, can assure the minimumspace and make sure the accuracy

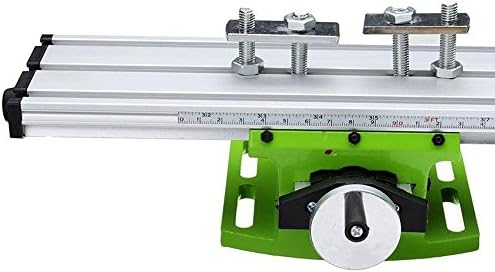

The working desk comes with three T formed groove, commonplace dimension is 15x8x6mm.

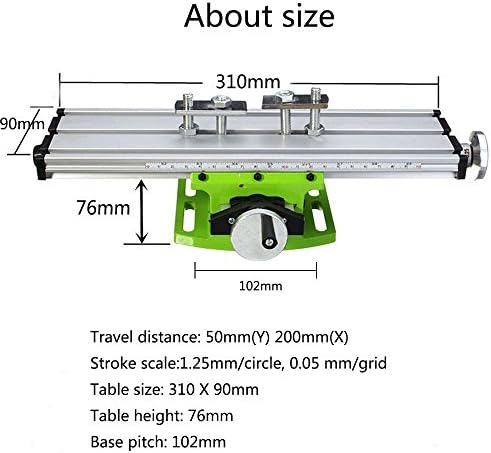

X axis journey : 200mm,Y axis journey : 50mm, Distance between grooves : 34mm
Working desk dimension : 310mmx90mm, Top : 80mm (together with two working clamp)
