HiLetgo 3pcs ADS1115 16 Bit 16 Byte 4 Channel I2C IIC Analog-to-Digital ADC PGA Converter with Programmable Acquire Amplifier Excessive Precision ADC Converter Improvement Board for Arduino Raspberry Pi

Value: $11.99
(as of Apr 14,2021 15:13:01 UTC – Particulars)

Description:
For microcontrollers with out an analog-to-digital converter or if you desire a higher-precision ADC, the ADS1115 offers 16-bit precision at 3300 samples/second over I2C. The chip may be configured as 4 single-ended enter channels, or two differential channels. As a pleasant bonus, it even features a programmable acquire amplifier, as much as x16, to assist enhance up smaller single/differential indicators to the complete vary. The chip’s pretty small so it comes on a breakout board with ferrites to maintain the AVDD and AGND quiet. Interfacing is finished by way of I2C. Merely join GND to floor, VDD to your logic energy provide, and SCL/SDA to your microcontroller’s I2C port and run the instance code to start out studying knowledge.

Parameters:
ADC Bit price: 16 Bit
Interface Sort: I2C
Channels: 4 Channel AN0 AN1 AN2 AN3
Enter voltage: 2.0v-5.5v
Channel enter voltage : 0-VDD
Steady Mode: Solely 150μA
Single-Shot Mode: Auto Shut Down
Programmable knowledge price: 8sps-860sps
Enter vary programmed management, 7 sorts enter ranges:
-0.256V ~ + 0.256V, -0.512V ~ + 0.512V, -1.024V ~ + 1.024V, -2.048V ~ + 2.048V, -4.096V ~ + 4.096 V, -6.144V ~ + 6.144V I2C 7-bit addresses between 0x48-0x4B

Package deal Included:

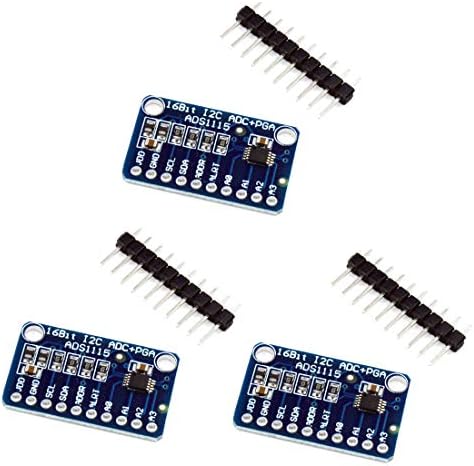

3 * ADS1115 16 Bit 4 Channel Analog-to-Digital ADC Converter 3 * Pin Header

A straightforward to make use of I2C ADC Converter, with Programmable Acquire Amplifier
Particularly software for Raspberry Pi that does not include analog GPIO pins
Large voltage provide vary: 2.0V to five.5V, function in a comparator mode which is useful for sustaining accuracy
Single-Shot Mode: Auto Shut Down; Programmable knowledge price: 8sps-860sps
