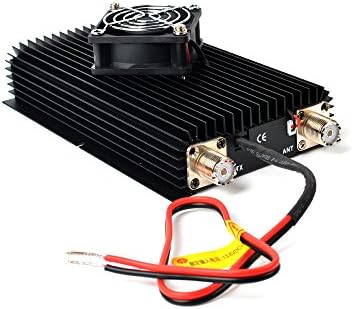

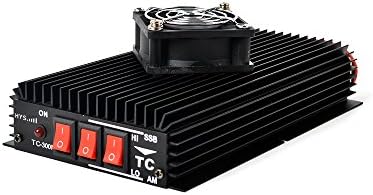

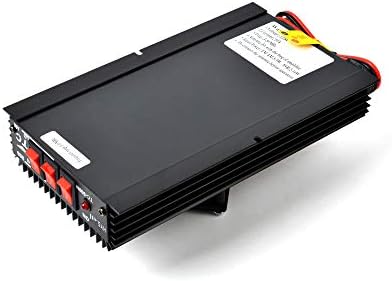

HYS TC-300 CB Band HF AMP for CB Band Handheld Radio Transceiver

Worth: $189.99
(as of Jun 08,2021 07:14:16 UTC – Particulars)

Specification:

Frequency vary HF

Function voltage:12-14 Vcc

Enter present/POWER:14-20 A

Enter energy:1-5 W

SSB enter energy:2-10 W

FM Output energy:Max 150 W(Enter 10W)

AM Output energy:Max 150 W(Enter 10W)

SSB output energy:Max 300 W(Enter 10W), Max 250W (Enter 5W )

Working mode:FM- AM-CW-SSB

Blown fuse:2×12 A

Dimension:109x225x35 mm

Product Description:

To amplify the moveable two approach radio/ walkie talkie energy.

Heat immediate:

1. To succeed in the Max output, the enter energy additionally needs to be the MAX.

2. The enter energy needs to be throughout the vary, or it will likely be broken.

3. The completely different modes work beneath completely different situations, so please test instruction earlier than utilizing it.

One thing New and impirtance in regards to the Up to date Model:

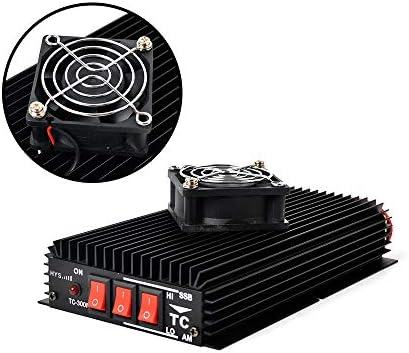

Q1.Why did we resolve to design a “Fan” on the amplifier?

A1. In the course of the programming of investigating common prospects of the amplifier, over two thirds of the shoppers go away the mssage that they should put a additonal fan to chill the amplifier when it’s working.They suppose generally, when a fan isn’t availabel, it can get far more enterprise. Additionally, contemplating that the excessive diploma of warmth dissipation will have an effect on the amp’s working effectivity, our engineers determined to place a fan on the amplifier. It does drastically ease the issue.

Q2. Why selected such a ” loud voice ” fan to placed on the amp.

A2. Expensive buddy, whether it is that on the first, we obtained two sorts of the followers to contemplate —- one is with decrease noise and value however simply with decrease rotate velocity, whereas one other one is with a louder noise and better value, nevertheless it works extra completely and feectively with hiher rotate velocity. So, we select the later one, though the noise is louder nevertheless it does work properly with the warmth dissipation.

Concerning the working basic output for AM & FM mode is round 100W and the simplest output is round 200 W with enter 5 W and round 200-250 when the enter is 10W.
The frequency of the connecting antenna could be very vital. It is usually needs to be join with the amplifier corresponding frequency. Whether it is decrease or greater than the required, it is not going to work and even is not going to solely burn out the amplifier but in addition will harm the radio.
If you wish to attain the PE MAX output, please test that the enter ought to precisely 10W or 5W, the DC Energy ought to truly be over 14V and 18A and in addition different situations needs to be perfecT. Totally different mode have the completely different enter requirement.
Nevertheless, we don’t recommend to work the PE Max for a very long time,it can lower the amp’ life time and in addition if the antenna can’t endure the output watt, which is able to harm the amp, thanks very a lot!
