Maker Hart Simply Mixer M – Mini Microphone Mixer with Preamp for Phantom Energy, USB Audio Enter and Output (Premium Package deal, Black)

Worth: $99.99
(as of Apr 10,2021 06:55:53 UTC – Particulars)

Product Description

Tiny mixer, huge options!

The rising household of compact mixers from Maker Hart welcomes the most recent member: the Simply Mixer M. Join microphones, computer systems, tablets, telephones, devices*, DJ tools—this mixer can deal with all of it! Designed by skilled sound tools makers to satisfy a necessity that has but to be met, the Simply Mixer M by Maker Hart crams tons of key options right into a package deal smaller than the typical smartphone.

Restricted Anime Version Premium Pack This restricted run model options anime art work to provide your mixer some severe flare. It additionally consists of the entire equipment discovered within the premium pack, together with lapel mini mic and XLR and 1/4″ adapters. * Devices that require excessive enter impedance corresponding to electrical guitars and basses would require a separate DI field for optimum sound.

Simply Mixer M has onboard phantom energy preamps to energy condenser and electret microphones with plug-in-power, and in addition handles dynamic microphones with ease. Join as much as 2 microphones and set the preamp to the fitting setting—OFF for dynamic mics, 1.5v for electret microphones (lapel and mini-mics), or 48v for condenser mics—and you might be able to document podcasts, reside music or no matter your creativeness comes up with. Notice: Microphones with 3-ring (TRRS) connectors would require an adapter (bought individually). (Not appropriate with USB microphones.)

24-bit / 96kHz USB Audio IN and OUT

Hello-res 24-bit / 96kHz onboard DAC permits 2-way USB audio streaming. This implies you should use the Simply Mixer M as an exterior sound card, join it to your cellphone or pill through USB OTG*, use it as an audio interface or excessive decision DAC. (Not appropriate with USB microphones)

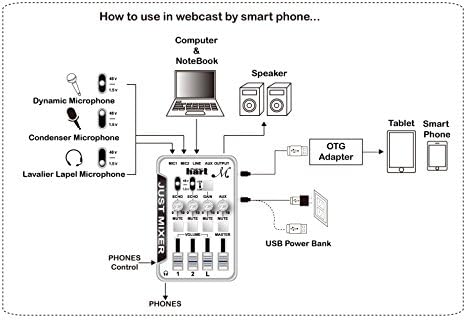

Moreover private use, the Simply Mixer M is nice for musicians, DJs or audio technicians to combine and monitor audio. Free your self from heavy, outsized tools to clear up desk area or save your again out at avenue venues, music golf equipment, or anyplace you’d prefer to carry out or document. Additionally it is preferrred for combining totally different sound inputs in webcasting on Fb, YouTube, and different reside streaming platforms.

* Connection to cellular gadgets could require an adapter, bought individually.

ACCESSORIES : (Premium , Customary)

1. USB to Micro USB Cable x 1 (Premium ,Customary)

USB 5V / 1A adapter x 1 (Premium ,Customary)

3.5mm cellphone audio cable (3 ring) x 1 (Premium ,Customary)

3.5mm to XLR audio adapter x 1 (Premium )

6.35 to three.5mm adapter x 1 (Premium )

1.5V Electret condenser microphone x 1 (Premium )

Consumer’s information x 1 (Premium ,Customary)

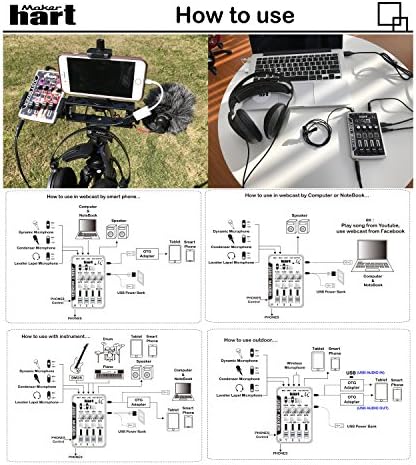

Straightforward connections

Due to the 1/8″ / 3.5mm inputs and outputs, simply join trendy gadgets like telephones and laptops with none further adapters. Powered by USB, simply join the Simply Mixer M to any USB charger* or USB cellular energy financial institution and you might be prepared to begin mixing.

Use the included TRS to TRRS cable to document audio utilizing gadgets with audio combo jacks (built-in audio in/out jacks) corresponding to telephones and tablets. To make use of telephones, tablets, and so on., to document, merely join the two-ring finish of the cable to the mixer and the three-ring finish to the combo jack, and use a recording app on the cellular gadget to seize sound coming from the mixer.

​* Utilizing the included USB energy adapter is advisable for minimal noise. Should you expertise noise or interference, strive one other energy supply or a USB energy financial institution.

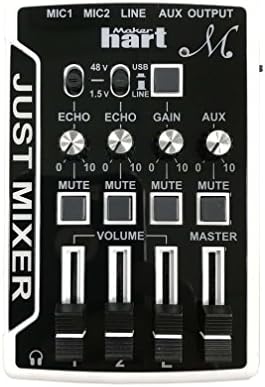

Controls and jacks :

1. Mono mic inputs (2 x 1/8″ / 3.5 mm) , Stereo line in (1 x 1/8″ / 3.5 mm) with achieve knob

2. AUX enter (1 x 1/8″ / 3.5 mm) with quantity knob , Stereo output (1 x 1/8″ / 3.5 mm)

3. Headphone jack (1 x 1/8″ / 3.5 mm) with quantity wheel , Grasp and channel quantity faders

4. Impartial preamp selectors , Microphone echo impact knobs

5. Micro USB audio enter/output port (Not appropriate with USB microphones) , USB audio in / Line-in toggle change (needs to be ‘up’ for USB audio out)

6. Achieve : MIC1 / MIC2: 50 dBm , LINE: 50 dBm , AUX: 205 dBm

7. Weight: 4.2 oz / 120g (mixer solely)

8. Present consumption (max): 650mA

9. Energy provide: micro USB (5V)

10. Earlier than connecting microphones, examine your microphone consumer guide or producer’s data for the microphone’s energy necessities. Though unlikely, some microphones could also be broken by connecting on the incorrect voltage.

The included audio combo jack cable (TRS to TRRS) will not be an AUX cable; it’s for recording utilizing gadgets with combo jacks (built-in audio in/out, corresponding to telephones and tablets) and won’t perform as an everyday audio cable.MUTE controls and Grasp quantity don’t have an effect on monitor headphones—use the headphone quantity wheel to manage headphone quantity.MUTE button above the Grasp quantity is for muting the AUX enter.USB Audio: To make use of USB audio enter, be certain the USB/LINE button is depressed and glowing purple. For USB audio output, be certain the button is up and the sunshine is off. (Not appropriate with USB microphones.)MIC inputs are mono solely; the identical sign might be heard on each channels of all of the mixer’s outputs. The MIC inputs usually are not appropriate with 3-ring TRRS plugs discovered on many headsets; use a TRRS splitter cable to attach the sort of headset mic.

Troubleshooting noise :

Use the included USB energy adapter each time doable.Attempt plugging into a special electrical outlet or use a USB energy financial institution.Examine for interference from different tools related to the identical energy circuit.Enter gadgets quantity management needs to be set round 70%. Should you hear distortion, decrease the channel quantity till no distortion is heard. Then enhance quantity utilizing the Grasp fader, headphone quantity wheel or quantity management in your audio system.Use the mixer’s achieve knob sparingly. Improve your enter gadget’s quantity first. Solely rising quantity settings on the mixer could trigger a excessive noise stage.Extra static noises could come up attributable to interference from different connections in shut proximity. Don’t energy mixer from a charging hub that additionally powers different gadgets, particularly if these gadgets are additionally plugged into the mixer.Methods to use Simply Mixer M for ZOOM can discover Maker hart youtube video.

Condenser Microphone 48V

1. Join the USB energy, activate the facility change.

2. Join the condenser microphone to MIC1 or MIC2 enter.

3. Flip the facility change to “48V”.

4. Join the audio output to audio system / headphones.

5. Regulate VOLUME 1 / VOLUME 2 fader to go well with sign stage.

Dynamic Microphone

1. Join the USB energy, activate the energy change.

2. Join the dynamic microphone to MIC1 or MIC2 enter.

3. Flip the facility change to “—”.

4. Join the audio output to audio system / headphones.

5. Regulate the VOLUME 1 / VOLUME 2 fader to go well with sign stage.

Electret Condenser Microphone 1.5V

1. Join the USB energy, activate the facility change.

2. Join the electret condenser microphone to MIC1 or MIC2 enter.

3. Flip the facility change to “1.5V”.

4. Join the audio output to audio system / headphones.

5. Regulate the VOLUME 1 / VOLUME 2 sound supply sign.

ESSENTIAL ACCESSORIES – Report proper out of the field with the included lapel mic, XLR adapter and 1/8″ to 1/4″ adapter.
USB AUDIO INTERFACE – Stream 24-bit / 96kHz digital audio over USB to or from the mixer by connecting to computer systems and cellular gadgets.
TINY MIXER – Becoming simply in your hand, that is the world’s smallest mixer to incorporate 2 preamped mic inputs.
BIG FEATURES – Inputs for mics, Line, USB audio and AUX; Outputs for powered audio system/recording, headphones and USB audio; Grasp and Channel quantity faders; Channel mutes, Line-in achieve management, mic echo impact—this mini mixer has all of it! Additionally it is preferrred for combining totally different sound inputs for webcasting on Fb, YouTube, and different reside streaming platforms.
