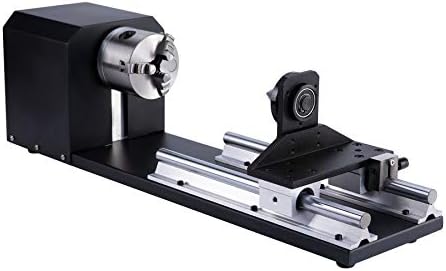

OMTech Rotary Cutter and Engraver Attachment with 3-Jaw Chuck and 2-Section Stepper Motor for 50W 60W 80W 100W 130W CO2 Laser Engraving Machines K40 Rotary Software Accent Equipment for Wooden and Extra

Worth: $289.99 - $225.99
(as of Jun 04,2021 00:48:07 UTC – Particulars)

Product Description

This revolutionary rotary axis attachment provides a brand new dimension to your manufacturing by permitting you to engrave spherical or cylindrical objects: cups, bottles, pipes, tubes, and extra! Straightforward to put in and use, our rotary axis desk simply works with all OMTech laser merchandise besides our 40W engraver.

Specification

Ratio
1:2.5
Motor Materials
H62 Brass
Rated Voltage
2.07V DC
Max. Static Torque
0.9 N·m
Swing
A-AB-B Clockwise
Step Angle
1.8° (±0.09°)
Rated Present per Section
1A
Inductance per Section @ 1kHz
24–36 mH

Detent Torque
320 g-cm
Max. No-Load Begin Frequency
≥1500 pps
Max. No-Load Operating Frequency
≥2500 pps
Tooth Type
MXL
Tooth Quantity
20
Tooth Pitch
2.032 mm
Pitch Circle
⌀12.936
Outer Circle
⌀12.428 (±0.003)

How do you engrave cylindrical objects?

Step 1: Join the cable of the rotary axis to the cable port of your laser engraver.

Be certain that the motor of you rotary axis matches that of your laser engraver.

Step 2: Configure this attachment’s settings utilizing your laser engraver’s software program.

Step 3: Begin engraving.

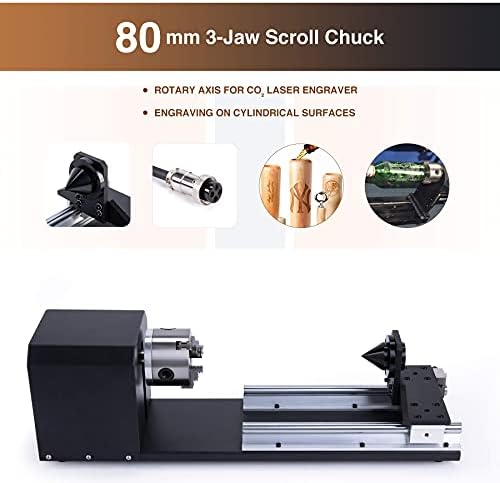

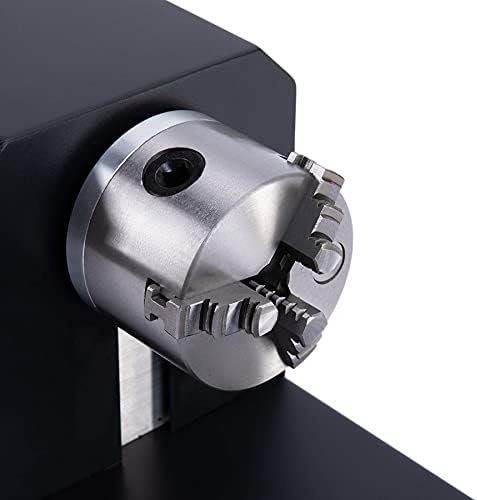

80mm 3-Jaw Scroll Chuck

Our 3-jaw chuck gives an excellent sturdy grip to your engraving objects. It boasts glorious warmth dissipation, extending its service life.

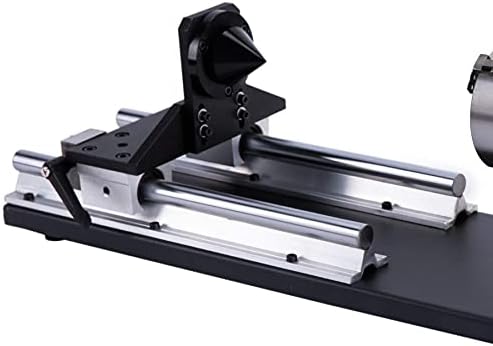

Nicely-Designed Tailstock

Making certain easy rotation of your supplies, the precision-engineered tailstock gives surprisingly secure, environment friendly, and quiet operation.

Straightforward Connection

This rotary axis simply connects to your OMT engraver utilizing the included cable and is aligned and managed utilizing its built-in software program.

Value
289.99
239.99
149.99
Stepper motor
Nema 23
Nema 23
Nema 23
For Laser Engraver Machines
50 Watts and above
50 Watts and above
50 Watts and above

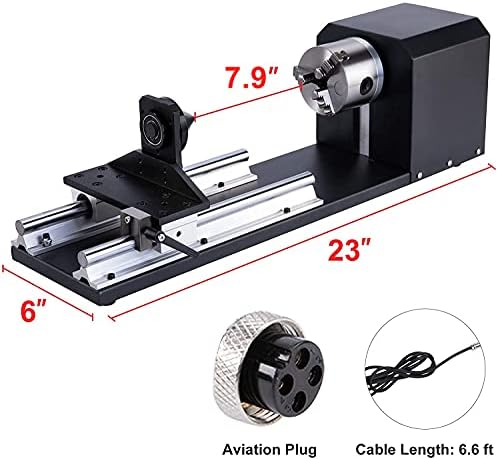

Dimension
23″ x 6″ x 7″
20″ x 10″ x 7″
15” x 6.1” x 3.2”
Weight
19.9 lb.
13.2 lb.
4.41lb.

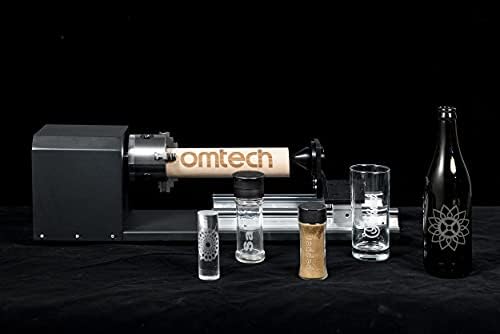

ENGRAVES ROUND SURFACES: This OMTech rotary axis can simply work with most laser engravers 50W or greater to allow you to carry out 360° engravings on cylindrical and spherical objects comparable to cups, bottles, tubes, pipes, bowls, and extra!
HIGHLY DURABLE: Made from robust iron and aluminum alloy, this rotary cutter and engraver attachment includes a corrosion-proof coating to make sure long-term & dependable use
EASY INSTALLATION: You simply want to attach the 4-wire attachment cable of this rotary instrument to the devoted port in your laser engraver and configure the settings in your software program to get your carving began
SMOOTH NOISE-FREE OPERATION: This rotary accent instrument package includes a precision-engineered 3-jaw chuck and tailstock that enable for easy, environment friendly, and noise-free operation that’s best for DIY, residence, or industrial use
SATISFACTION GUARANTEED: This rotary axis attachment comes with our regular sturdy guarantee and pleasant customer support to vow you a worry-free buying expertise
