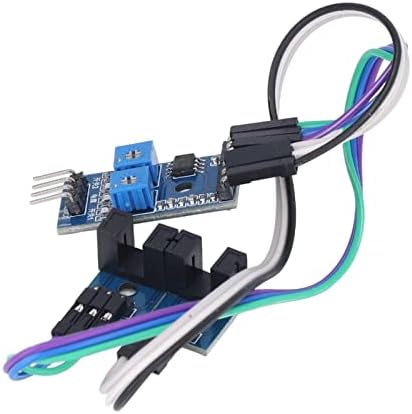

Pwshymi Slot Kind Optocoupler Modules, Velocity Sensor Module 2 Means 3.3V-5V 15mA for DIY Package

Value: $6.79
(as of Sep 22,2022 00:22:47 UTC – Particulars)

Characteristic:
1. 2 WAY PULSE COUNTING: Extensively utilized in motor pace detection, pulse counting, place restrict, and so forth., with 2 method detection, correct and environment friendly
2. WITH INDICATOR: There’s an output standing indicator, when the output excessive stage gentle is off, the output low stage gentle is on. When there’s a block, the output low stage; when no block, the output excessive stage
3. SIGNAL WITH GOOD WAVEFORM: Comparator output carry sign, good waveform, sturdy driving skill, greater than 15mA, very secure

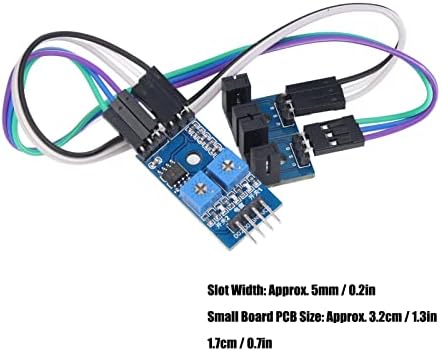

4. WITH FIXING HOLES: Slot width for 5mm, small board PCB dimension is 3.2cm x 1.7cm. There are fixing bolt holes for straightforward set up
5. USE WIDE VOLTAGE COMPARATOR: Undertake digital swap output type(0 and 1), use vast voltage LM393 comparator, working voltage from 3.3V-5V

The way to Use:
1. When the module slot is not blocked, the receiving tube is turned on, the module DO outputs a low stage, and when it is blocked, the DO outputs a excessive stage.
2. The module DO can be linked with a relay to type a restrict swap and different features, or can be linked with an lively buzzer module to type an alarm.

Specification:
Merchandise Kind: Velocity Detection Sensor Module
Slot Width: Approx. 5mm / 0.2in
With blocking, output low stage; with out blocking, output excessive stage
Working Voltage: 3.3V-5V
Output Type: Digital swap output(0 and 1)
Outfitted with fixing bolt holes for straightforward set up
Small Board PCB Dimension: Approx. 3.2 x 1.7cm / 1.3 x 0.7in
Utilizing a large voltage LM393 comparator

Package deal Checklist:
1 x Velocity Detection Sensor Module
