Techamor Y201 Transportable Methane Propane Flamable Pure Fuel Leak Sniffer Detector

Worth: $37.99 - $32.69
(as of Sep 21,2022 20:21:28 UTC – Particulars)

Product Description

Transportable Flamable Fuel Leak Detector

Model Introduction

By steady expertise innovation and product optimization, Techamor are dedicated to offering easy & smarter manner to enhance our day by day life and defend the household’s security.

In the meantime, engineers on employees from manufacturing unit assist to reply any questions you’ve associated to pure fuel, propane, methane, and sewer and so on. Superior high quality and analysis potential assist defend what issues most.

Techamor Transportable Fuel Leak Detector/Sniffer – Y201

1. The place to make use of: Find fuel leak level at dwelling & VR

The Y201 moveable sniffer is an easy-to-use system that gives sound and visible alarm in presence of methane, propane, corresponding to LPG, gas and pure fuel.

It’s primarily used to search out and find precise fuel leak level alongside fuel pipeline, round fittings or connectors at dwelling & VR, and different related functions. Helps to save lots of a whole bunch of diagnostic charges from technician or plumber, and makes it is potential to debug fuel leakage anytime by DIY.

For 24h fuel monitor and detection, seek advice from Y301 and Y302.

Package deal Comprises:
1*Fuel Leak Detector
1*Consumer Handbook
1*Product Card

2. Methods to use: most necessary steps/suggestions – Sensitivity Adjustment

2.1 Heat up course of: round 10s

The speaker will at all times have “di didi…” till we flip off system, besides one second in step 2.2. At heat up interval, ticking noise frequency is sluggish: round 2~3 occasions/s.

The knob is used to regulate sensitivity of detector after end 10s heat up course of, through the course of, irrespective of find out how to modify the knob, the system will not have any reactions.

2.2 Rotate the knob to regulate sensitivity

If the alarm sounds prematurely and LED lights are on after heat up, have to lower sensitivity to stop false alarm (dial downward “-“, proven as pink arrow) .

Rotate the knob to regulate sensitivity till the primary backside LED flip off or on the threshold of lighting up, and the second that ticking sound stops. That is the very best standing.

But when it is inconvenient to get the very best standing, we are able to simply make the primary backside LED be on and have sluggish ticking “di di….” sound. As a result of as soon as encounter leakage, all the remaining 4~5 LED will probably be triggered on collectively at only one second.

2.3 Prepared to smell or hint leakage

Transfer the probe alongside pipeline or across the suspected leakage factors, corresponding to fittings, connectors and switches, as soon as encounter fuel leakage, all 5~6 LED lights will probably be triggered instantly and the low frequency (2~3 occasions/s) ticking will turn into piercing sounds (frequency 6~7 occasions/s, too quick and human ears can’t distinguish one time by one time) .

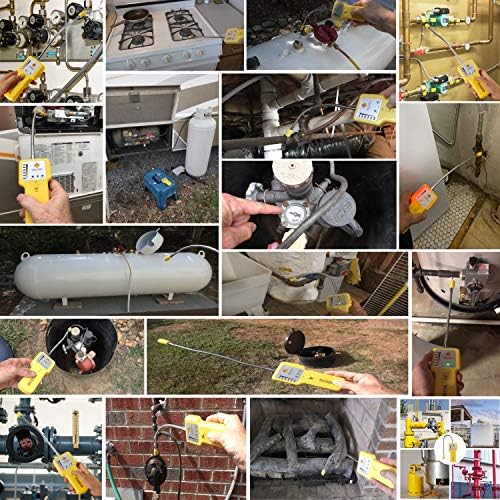

3. Totally different Utilization Photos Assortment from Pretty Clients

4. Incessantly requested questions and considerations:

4.1 Might inform extra associated to make use of?

1) Straightforward to know video will probably be good selection, seek advice from “How and the place to make use of the Y201 fuel leak detector” round photos space at starting . 2) Get service help, engineers on employees from manufacturing unit on-line will assist to reply any questions associated to leakage if above video can not help to know.

4.2 Why at all times has ticking sound?

The design of ticking sound has two functions: 1) Signifies the system is working.For some instances, we have to prolong the probe to the realm that we won’t see LED lights, clients might choose via the sound modifications. The inexperienced energy LED gentle can be used to point the system is working. 2) Characterize completely different ranges of fuel leakage. Low frequency (round 2~3 occasions/s) means warm-up interval or no leakage, if turned into excessive frequency (round 6~7 occasions/s) throughout detection course of, means encounter leakage problem.

Notes: above relies on we set sensitivity nicely, as a result of if we rotate the knob at anti-clockside an excessive amount of, even there don’t have any leakage, all of the 6 LED will probably be triggered on and sound will grow to be piecing excessive frequency.

4.3 Some batteries solely use 10~quarter-hour, then low battery indicator is on.

In line with our experiment information at lab for various batteries model, often final from quarter-hour to 4 hours. Totally different model batteries have very completely different high quality. Certainly, the system is hungry for batteries. The sensor within the probe wants giant energy for micro burning course of and we are able to really feel slightly heat if we use finger to carry the probe. One more reason perhaps product itself, parts (resistor, capacitor……) tolerance or injury on the PCB board may result in giant energy consumption, however the charge could be very low.

Often once we discover clients from dwelling inspection firm, we’ll recommend buying rechargeable Li-batteries, as a result of their technicians or plumbers use the system ceaselessly and Li-batteries will assist to avoid wasting batteries price.

4.4 Is it regular or secure if get 1 pink bar when transfer to excessive moisture room, round connectors or just blow on probe?

Don’t be concerned, it is regular, the big moisture change and CO have an effect on the sensor efficiency, and should result in false alarm by 1~2 LED pink bars, however solely final for 1~3s (very quick time) if we transfer probe away. If we encounter leakage alongside the pipeline or connectors, all 5~6 LED bars will probably be triggered on at one second, gentle and piercing sound alarm will final no less than for six~8s.

4.5 what’s greatest distance between probe and pipeline/ranges/connectors…. throughout test course of?

Suggest 1~10cm, if too far, focus will grow to be smaller as distance improve from leak level, and perhaps not sufficient discover and find tiny leakage.

4.6 How about bubble methodology to test leakage in contrast with Y201?

Bubble is excellent manner and can be utilized to test all types of fuel leakage whereas Y201 is especially used for flamable fuel. However for very tiny leakage and really robust leakage, bubble methodology perhaps not ok: 1) too tiny leak cannot blow up bubble, too robust will blow the liquid away and might’t have bubble, 2) some areas we won’t prolong to use bubble liquid, 3) want good luck and expertise to regulate the bubble liquid focus if DIY bubble liquid, 4) in some case, liquid contact might result in gear or system injury.

One of the simplest ways is: use each strategies for double verify if allowed, since bubble is extra seen.

Dimension
47.0cm x 7.0cm x 3.5cm
90mm x 84mm x 39mm
94mm x 94mm x 31mm

Energy
AAA battery (Not included)
5W 110-220V 50/60Hz
3W 110-220V 50/60Hz

Sensor Kind
Semiconductor Fuel Sensor
Semiconductor Fuel Sensor
Catalytic Fuel Sensor

Software
Precise Leak Level Location
Fixed Fuel Monitor and Detection
Fixed Fuel Monitor and Detection

Detection Fuel
Methane & Propane
Methane & Propane
Methane & Propane

Alarm Kind
Sound and LED Alarm
Sound and LED Alarm
Voice and Gentle Alarm

Technical Particulars

Alarm
Visible: 6 pink LEDs, Audible: variable pace ticking

Response Time
≤ 2 seconds (10% LEL, Decrease Explosive Restrict)

Heat up Time
Round 10 seconds

Decision
50 ppm

Batteries Required?
Sure, AAA batteries, 3 pcs, not included

Battery Life
Roughly quarter-hour to 4 hours (Massive distinction between completely different battery manufacturers in keeping with experiments information within the lab)

Working Temperature
0 ~55 ℃ (32℉~131℉)

Relative Humidity
≤ 95% to keep away from condensation

Shade
Yellow

Dimension
14.6”x 2.8”x1.2” (37.0cm x 7.0cm x 3.2cm), housing materials: plastic
