trueCABLE Cat6 Plenum (CMP), 500ft, Blue, 23AWG 4 Pair Strong Naked Copper, 550MHz, ETL Listed, Unshielded Twisted Pair (UTP), Bulk Ethernet Cable

Value: $159.99
(as of Apr 13,2021 07:33:12 UTC – Particulars)

Product Description

On a regular basis Efficiency

1 Gigabit as much as 328ft.10-Gigabit Ethernet as much as 165ft relying on the set up surroundings.550 MHz Bandwidth.Helps PoE, PoE+ and PoE++ as much as 60W and 300V DC.

Compatibility Counts

Terminate with shielded or unshielded Cat6 RJ45 connectors suitable with 23AWG stable conductors with an insulated conductor diameter of 0.95mm and an total cable jacket diameter of 6.00mm.

Sequential Footage Marking

Our cable jackets are marked each 2 toes to enhance effectivity and simply monitor how a lot cable is left on the EZ Pullreel.

Pure Strong Copper

Complies with UL, ANSI/TIA, and U.S. product security requirements the naked copper is superior conductor materials for knowledge transmission and PoE use. The one business and governmental authorized kind of conductor to be used in Ethernet networks.

Class & Compatibility

Cat6

Cat6

Cat6

Cat5e/6/6A

Cat6

Cat6

Amount

500ft

1000ft

100pc

1pc

48pc

12pc

Switch Pace / Bandwidth

1 to 10-Gigabit/550 MHz

1 to 10-Gigabit/550 MHz

1 to 10-Gigabit/500 MHz

1 to 10-Gigabit/500 MHz

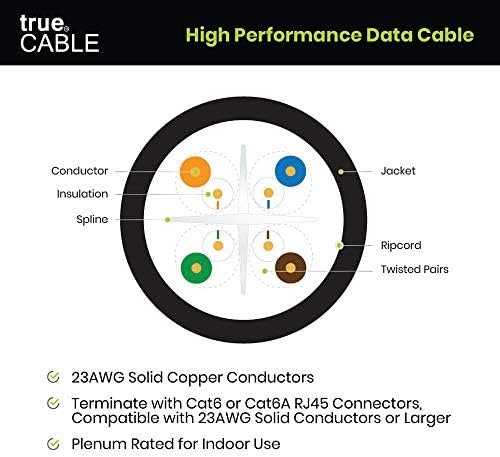

HIGH PERFORMANCE NETWORK CABLE. This plenum rated cat 6 lan cable is 23 AWG with 4 pairs (8C). Appropriate for 1 Gigabit as much as 328ft and 10-Gigabit Ethernet as much as 165ft relying on the set up surroundings. Bandwidth examined as much as 550 MHz. Helps PoE, PoE+, and PoE++ (IEEE 802.3af/at/bt) as much as 60W and 300V DC.

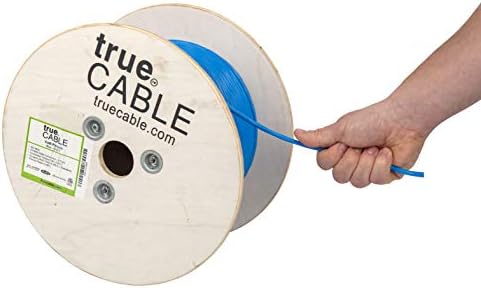

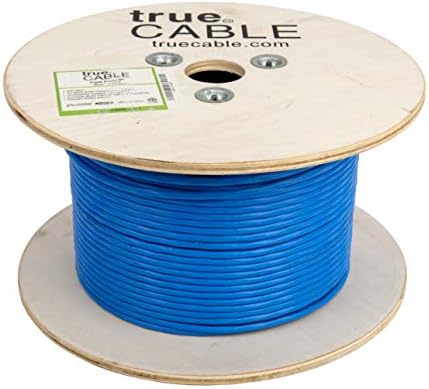

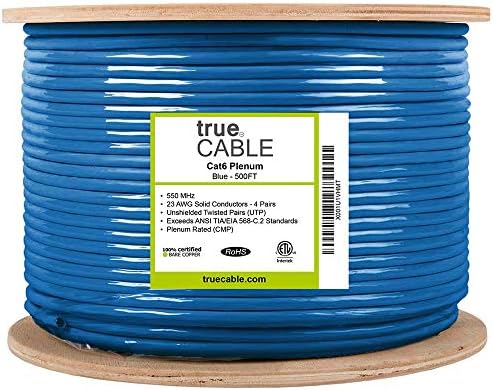

HASSLE FREE PACKAGING. 500 toes (152 meters) of our trueCABLE product has been packaged on a tangle free, straightforward pull reel so that you don’t have to fret about getting behind in your subsequent job.
SOLID BARE COPPER CONDUCTORS. Pure naked copper produces a stronger sign together with higher conductivity and suppleness when in comparison with copper clad aluminum (CCA).
FOR USE INDOORS. The blue plenum jacket is hearth security rated to be used in air plenum areas above suspended ceilings or under raised flooring. Excessive diploma of flame resistance and low toxicity smoke.

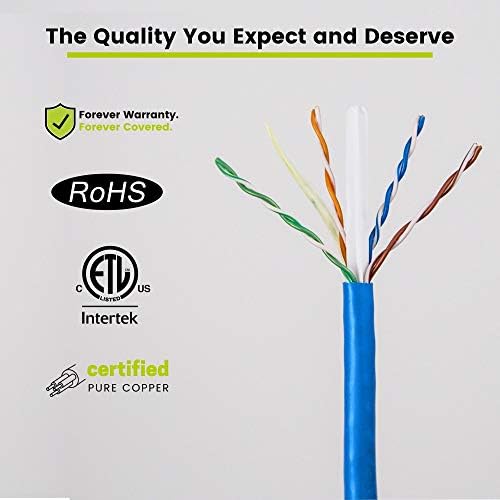

✓ CERTIFIED by trueCABLE. Our knowledge cables have been examined with a Fluke DSX-8000 Versiv CableAnalyzer and are in compliance with ANSI/TIA 568.2-D requirements, RoHS-3 compliant, and cETLus licensed. Backed by our FOREVER WARRANTY.
